Rigid Box V-Grooving Machine is specifically designed for Box Makers, Book Binders, and other Card Board Product Manufacturers.

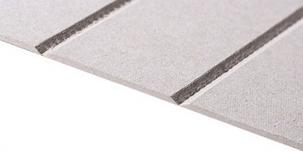

Megabound V-Groover cuts grooves into board blanks that can subsequently be folded into high-end luxury boxes. This machine enables pack producers to create boxes with crisp corners with a solid finish.

The scoring blades can be adjusted to cut at angles of between 90° and 130° and the machine can produce with a versatile production speed-range of 30 to 300 meters a minute. The blades can be set to cut through to a precise depth, enabling our V-Groover to cut through to the last layer of the board. The machine can process boards of 1mm-6mm thickness and widths of up to 900mm. The changeover time is not more than 2-5 minutes.


Fully automatic board feeding with quick production flow. Single direction four lines V grooving. Extendable to the 5th line.



In a nutshell, A Perfect Solution to be part of your Luxury Packaging Division.


List Price $47,000    Please contact us for Sales Price

Live Demo at Local Bindery !

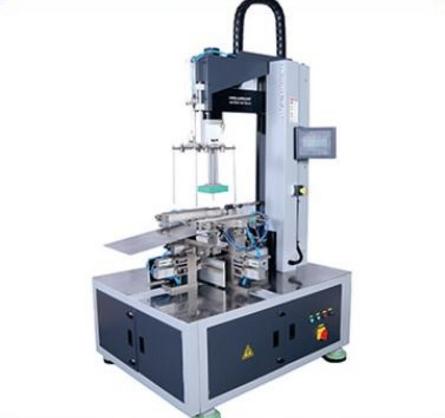

MEGABOUND RIGID BOX WRAPPING & FOLDING MACHINE

MEGABOUND RIGID BOX WRAPPING & FOLDING MACHINE

Rigid Box Wrapping & Folding Machine is the last leg in the semi-automatic box making solution. After the V-Grooved/Die-Cut Cardboard is glued with the Paper Cover/Wrapper, the box gets formed inside this machine. After the box is placed on the mould, side-wrapping, edge-folding, tucking-in and air-pressing can be finished simultaneously to bring out the most precisely finished boxes.

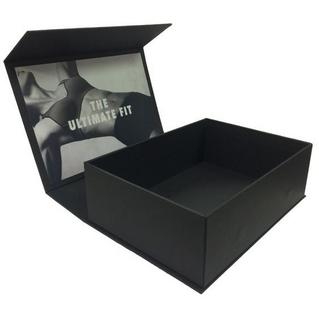

This machine can be used in making  Candy Boxes, Shoe-Boxes, Jewelry-Boxes, Gift-Boxes, Mobile Phone Boxes, Cosmetic Boxes, Custom Packaging and more !


List Price $75,000  Please contact us for Sales Price

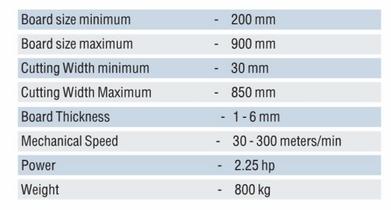

Technical Data

MegaBound V Grooving System
