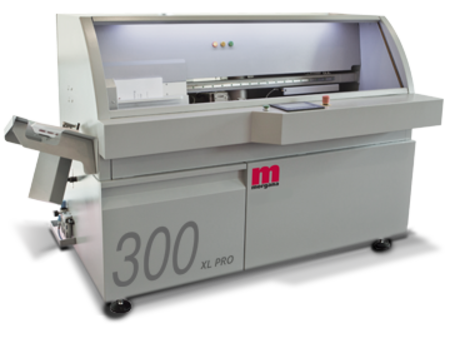

The DigiBook 300 is ideally suited to traditional and digital printers who require short runs of PUR perfect bound books to a professional standard. These innovative machines are equipped with a patented closed gluing system where the spine and side gluing is applied by a slot applicator for the utmost binding quality and accuracy.
There are a thousand alphanumeric memories available, which enable repeat jobs to be saved for later recall, thus providing totally automatic setup in a few seconds.
Key Product Features
Up to 300 books per hour
Touch screen operation complete with automatic format change. :
1000 alphanumeric memories available
Pneumatic opening and closing of clamp
Binding length (spine) from 3.9" up to 17.7"
Spine thickness from 0.07" to 1.9"
Spine preparation by sophisticated milling device
Paper chip extractor
Patented hermetically sealed PUR application system for spine and side gluing with automatic glue cut-off
Angled work surface keeps books in a vertical position
PB2000 Table Top
Description
The PB2000 tabletop perfect binder produces professional perfect bound books with the touch of a button. At half the price of the BQP6 Perfect Binder, the PB2000 provides superior capacity with the ability to bind books up to 1.44" thick and up to 12.75" long. It has a production speed of up to 140 books an hour and allows you to create your own soft cover books in as little as 25 second each. Its compact design, easy operation make it excellent for office and print environments.
Outstanding economical option for an introduction to Hardcover Binding. Simply use our PBX End Sheets in conjunction. Place our End Sheet in the cover holder & GO ! Our End Sheet design acts like a traditional cover would. Binding to your book block. Then simply peel & stick it into your already made hardcover & that's it !
List Price $4,995
The DigiBook 200 perfect binder is suited to traditional and digital printers who require short to medium runs of PUR perfect bound books to a professional standard. The DigiBook 200 is equipped with a patented closed gluing system where the spine and side gluing is automatically applied by a slot applicator for the utmost binding quality and accuracy.
PUR is the strongest, most flexible binding adhesive available and offers several additional advantages over other binding adhesives. When inks, coatings or digital print toners are present in the spine area these can compromise the strength of typical hotmelt perfect binding. PUR is resistant to this and will form a super-strong bond with all weights and finishes of paper stocks. In addition PUR works well with synthetic and recycled-content stock.
Key product features:
Up to 200 books per hour
Touch screen operation with automatic set up
Binding length (spine) from 4.3" up to 14.9"
Spine thickness from 0.03" to 1.96"
Adjustable spine preparation by sophisticated milling and notching device
Paper chip extractor
Patented hermetically sealed PUR application system for a spine and side gluing with automatic glue cut-off
Automatic cleaning and sealing of the glue head
Electronic connection to Morgana Autocreaser Pro for cover creasing

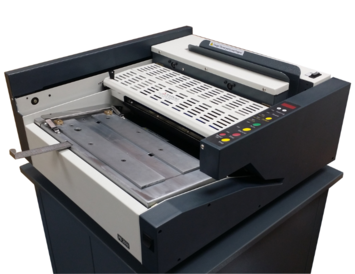

Graphic Whizard 460a, EVA Binder
Easy to use single clamp manual binder. Binds up to 2.25" thick. Clamp opens and closes with the single press of a button. Notching blades are housed beneath safety covers so that that are not exposed to the operator
Hot melt glue is applied to the spine by a rotating application drum
A scraper bar ensures that a smooth and uniform thickness of glue is always applied. Nip dwell time can be adjusted to ensure professional looking finished pieces are produced every time .
Product Features:
Electrical: 220-240V 1phase / 20A
Floor Model: Yes
Cycle Speed: 450 books/hour
Max Binding Length: 18.1”(46cm)
Max Binding Thickness: 2.25”(6cm)
Notching: Double layer (24 blades)
Dimensions: Length: 62” (156 cm)
Width: 29” (72 cm)
Height: 51” (130 cm)
Weight: 575 lbs (260 kg)
Clamping of Sheets: Electric / fully automatic
Clamping of Cover: Electric
Side Gluing: Yes
Cover Insertion: Manual
Warm up Time: 20-30 minutes
LCD Display: Yes
Dust Extraction: Vacuum, enclosed
Morgana DigiBook 450 the perfect binding machine for digital or litho printers.
PUR is the strongest, most flexible binding adhesive available and offers several additional advantages over other binding adhesives.
When inks, coatings or digital print toners are present in the spine area these can compromise the strength of typical hotmelt perfect binding. PUR is resistant to this and will form a super-strong bond with all weights and finishes of paper stocks. In addition PUR works well with synthetic and recycled-content stock.
The DigiBook 450 perfect binding machine is ideally suited to litho and digital printers who require medium to long runs of PUR perfect bound books to a professional standard.
This innovative machine is equipped with a patented closed gluing system where the spine and side gluing is applied by a slot applicator for the utmost bringing quality and accuracy.
Key Product Features
Up to 450 books per hour
Touch screen operation
Binding length (spine) from 3.9" up to 17.7"
Spine thickness from 0.07" to 1.9"
Spine preparation by sophisticated notching device
Paper chip extractor
Patented hermetically sealed PUR application system for spine and side gluing with automatic glue cut-off
Automatic cleaning and sealing of the glue head
Perfect Binding is an outstanding & time tested method of bookbinding. Choosing the right machine is an important decision and can make the difference between quality finished books that stand the test of time or books that fall apart and lead to unhappy customers. Please browse our selection below and see which machine may be right for you.
