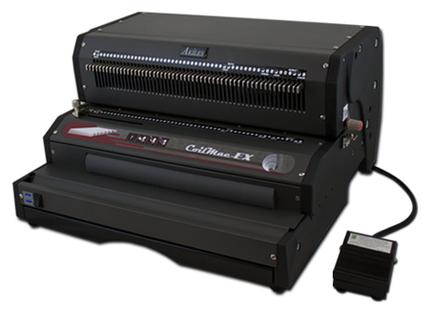

CoilMac-EX Series

All-In-One Electric Coil Punch, Electric Inserter, and Crimper
Oval Holes

With its heavy duty punch motor, built-in electric coil inserter and complete system of functions, the Akiles CoilMac-EX makes coil binding fast, easy, convenient and professional.

All Electric Operation: Powerful punching & inserting capability with a simple press of foot pedal.
Extended Single Punching Length (13”): With open ends & continuous punch guide to easily punch documents of any length (up to 26″).
High Volume Punch Capacity: Suggested up to 25-sheet for 20 lbs paper, or 2.6mm (28-sheet equivalent) for hardboard*, in 13” length (53 holes).
Super Strength Punch Mechanism with exclusive “Precision Guiding SystemTM” Blade Set: Cast-hardened & heat-treated steel dies provide superior strength & hardness. Exclusive “precision guiding system” guarantees a sharp & clean perforation everytime.
Electric Reverse (Anti-Jam) Function: For trouble-free punching.
Full Length Heavy-Duty Electric Coil Inserter with Double Roller Mechanism: 11-3/8” EPDM roller provides high friction and durability, making this inserter one of the easiest-to-use & most durable. Front-mounted roller position gives operator greater control & improves efficiency. Foot-pedal operated. Plastic & Metal coil compatible.
Industrial-Grade Roller Motor: Heavy-Duty motor (3 times heavier-duty than other similar machines in its class).
U-shaped Alignment Channel: Assists the operator to properly shape the document’s spine, for faster & easier coil insertion.
Side Margin Control: Provides an evenly centered punch for all document sizes.
Punching Margin Control: Provides the correct punch-margin-depth for each coil size and maximizes the document’s tear resistance.
Open Throat and Continuous Punch Guide: For an easy alignment and punching of longer documents up to 26”.
Rugged ALL Metal Construction: Makes it the most reliable & durable coil binding system in its class.
Extra-High-Capacity Waste Drawer
6 Height-Adjustable Non-Skid Metal Feet
CE Certification: All components certified & approved by CE for most stringent safety requirements.
ISO9001 & 14001 Quality: Manufactured under ISO9001 & 14001 guidelines for highest quality control & environmental management standards
Includes Coil Diameter Selector & Premium Oval Coil Crimpers

Binder Products    PO Box 2209   Chino, Ca  91708   P 909 988 4403   F 909 590 1103  rene@binderpro.com  All Rights Reserved

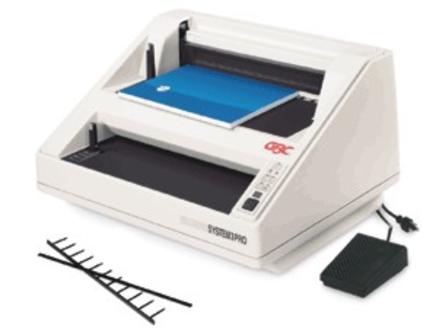

GBC Velobind System 3 Pro
*binds up to 3" thick
*punches up to 30 sheets per punch
*automatic pressure bar
*de-bind feature
*easy to use & operate
*best table top Velobind Machine on the market
Price $5,249

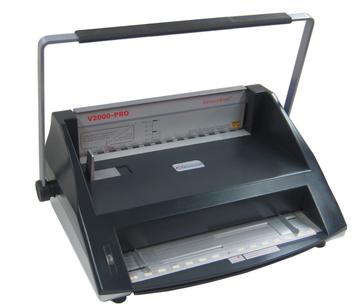

SecureBind 2" Velo Binder
*manually punch up to 20 sheets per punch
*binds up to 2" thick
*easy to use & operate
1 yr. warranty
Price $1,995

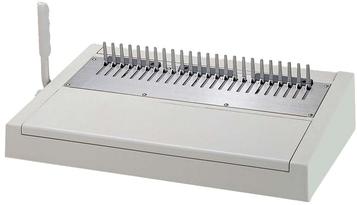

24 Ring Plastic Binding Comb Spreader
*opens & closes combs from 3/16" to 2" thick
*can close from a 2 ring comb to a 24 ring comb
*all metal construction
*ergonomic design
*easy to use & operate
*2 yr. parts warranty
Price $599

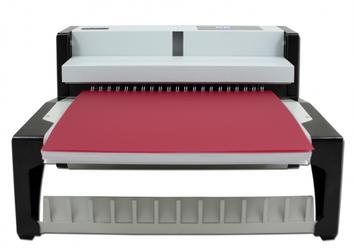

FlexiCloser Automatic Electric Double Loop Wire Closer
*auto detect wire sensor automatically detects the wire size & self adjusts to close
*Built-In Safety Sensor: The safety sensor is built into the closing system for safe and trouble-free closing without risk of injury.
*LCD Control Panel: The LCD display and Micro-Adjust keypad guarantees a perfect closure with all wire types and brands.
*3:1 or 2:1 Pitch: Compatible with all 3:1 and 2:1 wires, up to 1-1/2".
*Magnetic Back: Aligns and holds the wire securely in place during the closing process.
*Built-In Wire Holder
*easy to use, micro adjustments, start button
Price $2,895
Finish @ Coil M  Inserter
*nice coil inserter for lower  to mid volume use
*adjustable bottom roller for accomodating all coil sizes
*coil crimper holding compartment
*u shaped guide to help form book spine shape
*foot pedal operated
*coil diamater & selector guide
Price $699.00

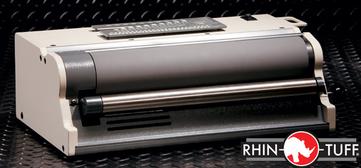

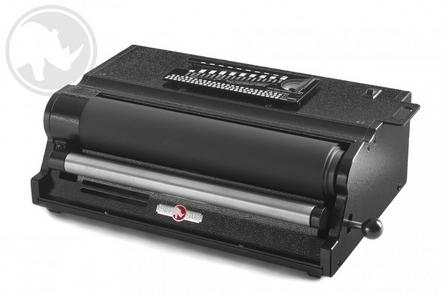

Rhinotuff HD4170 Coil Inserter
*12" (305mm) Dual Powered Adjustable Rollers, for easier more accurate coil insertion.
*Book thickness gauge
*Coil sizing gauge
*Fits on all OD and HD Series Machines.
*Can be used as a stand-alone Production Coil  Inserter.
*Crimper pliers holder
*Inserts All Pitches and Diameters
*Superior rubber formula grabs coil better.
*all metal construction, very durable machine
*easily adjustable bottom roller for size changes
*powerful 2 roller insertion to drive coil through
Price $1,995

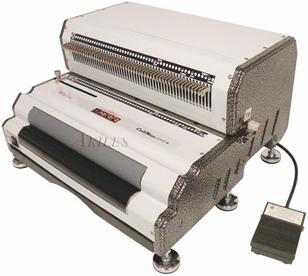

Akiles CoilMac EPI Plus
With 4mm x 5mm Oval Holes
The first & only equipment of its class to offer this advanced feature. Makes coil insertion much faster as compared to standard round holes.
*FULL Disengageable Pins: For a completely clean & professional punching of any paper size, all 54 pins can be independently pulled & disengaged.
*U Shaped Coil Former Assist
*Coil Inserting Unit attached to the machine, making a unique combination punch & bind system
*punches 20 to 25 sheets per punch
*punching depth control
*adjustable edge guide
*open throat punch
*all metal construction
*1 yr. warranty

This is a nice choice for combo punching & coil binding !
Price $2,099

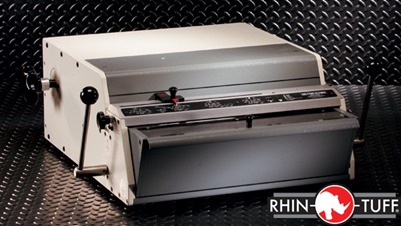

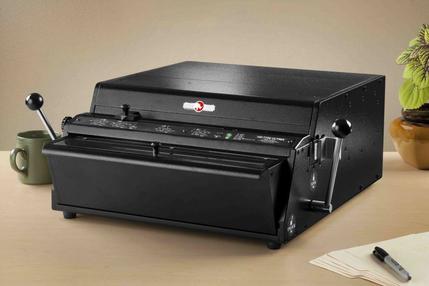

Rhinotuff HD7700 Heavy Duty Electric Punch
*Top of the Line Table Top Industrial Punch
*interchangeable dies can switch out in 5 seconds
*punches up to 40 sheets per punch
*punch Coil Holes, Comb Holes, Double Loop Wire, Velobind, 3 hole and various other patterns
*micro fine side adjustment
*foot pedal or trigger switch operated (optional)
*all metal construction
*on demand power
*1 yr. parts warranty
Price $6,023 plus shipping, Includes 1 die

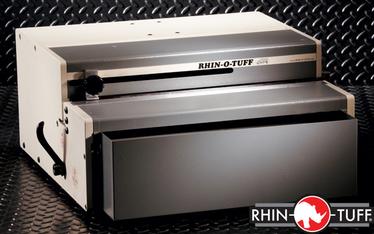

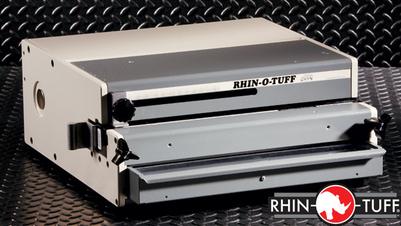

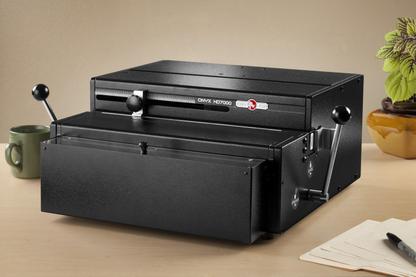

Rhinotuff HD7000 Heavy Duty Electric Punch
*outstanding punch for Print Shops, Binderies, or Office Environments with Heavy Punching Requirements
*interchangeable dies can switch out in 5 seconds
*punches up to 30 sheets per punch
*punch Coil Holes, Comb Holes, Double Loop Wire, Velobind, 3 hole and various other patterns
*all metal construction
*on demand power
*1 yr. parts warranty
Price $4,995 plus shipping, Includes 1 die

We know purchasing the right machine can be intimidating.  Is this a good fit for us ?  Will it last ?  Am I getting the best deal ?  All good questions.  Experience costs time and effort, and we've taken the efforts to understand and use the equipment we sell.  We're confident we can help you make an informed decision.  We invite you to browse some of our equipment offerings below, and please let us know if we can answer any questions for you.  We've sold, serviced and used all of the equipment we sell.  We also carry an inventory of pre-owned/refurbished machines.
