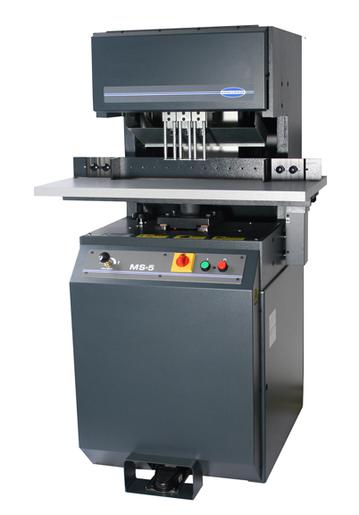

Challenge MS-5

Up to five heads handle many multiple hole patterns in a single stroke (three heads come standard). 2½" drill capacity.

- Side Guide Adjustments -

Backgauge Adjustments -

Easy Drill Length Adjustment -

2" Hollow Drill Bits Available in 13 sizes -

2-1/2" Hollow Drill Bits Available in 4 sizes

Single Phase 230v Electrical

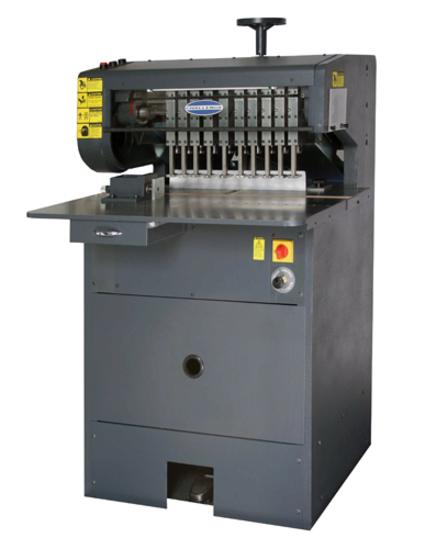

Challenge MS-10

High production and heavy-duty drilling of up to 10 holes in a single stroke makes the MS-10 the ultimate drilling machine.

- Drills Up To 10 Holes in One Stroke

- Maximum Drill Bit Diameter 1/2"

- 2-1/2" Drilling Capacity

- Powerful Hydraulic Operation

- Easy Head Adjustment

- Variable Speed Stroke Control

- Automatic Paper Chip Removal

- Rugged Cast Iron Construction

- Flexible Side Guide Adjustments

- Multi-Splined Drive Shaft

- Backgauge Adjustments

3 Phase 230v Electrical

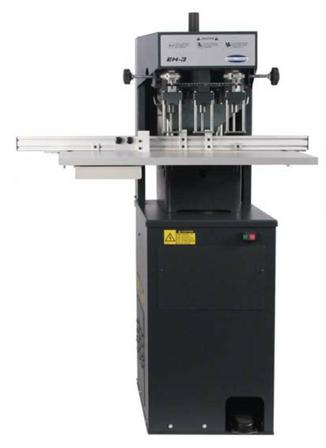

Challenge EH3-C

Hydraulic 3 Spindle

Drills the most popular 3-hole patterns in one stroke as well as single and double hole patterns. 2½" drill capacity.

Specifications-

Powerful Hydraulic Operation-

2-1/2" Drilling Capacity-

Fast and Easy Head Adjustments-

Flexible Backgauge Adjustments-

Automatic Drill Return-

Auto-Trip Side Guide (optional)

Number of Drill Heads 3

Drill Sizes Available (2" capacity) 1/8" to 1/2" / 3 to 13 mm

Drill Sizes Available (2-1/2" capacity) 1/4" to 1/2" / 6 to 13 mm

Range Between Drills 2-3/4" to 4-1/2" / 7 - 11 cm

Range Between Outside Drills 5-1/2" to 9" / 14 - 23 cm

Maximum Drilling Capacity 2-1/2" / 63 mm

Strokes per Minute (adjustable) Up to 18

Backgauge Adjustment 0 to 4-1/2" / 0 to 11 cm

Vertical Adjustment of Individual Heads 1/4" / 6 mm

Single Phase 230v

Price $6,995

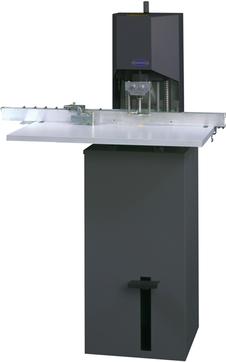

Challenge JF Drill

A manual, foot pedal operated drill with 2" drilling capacity. Auto-trip side guide for multi-hole patterns.

- 13 Hollow Drill Bit Sizes - Foot Pedal Operation - Automatic Paper Chip Removal - Adjustable Margins - Auto Trip Side Guide115 v Electrical.

Price $2,295

Challenge Handy Drill

Economical, convenient, and safe to operate.  Our newest  hand-operated table-top drill provides up to 2½" drilling capacity.  4 convenient adjustable stops.  From 1/8" to 1/2" Drill Sizes.  115v Electrical

Price $1,395

The FP-1(X)LS uses hollow bits to punch up to 300 sheets at one time. Table slides to position set by adjustable stops. These stops allow for set-up of two, three or four hole punching. Punch bits are available in sizes 3/16”, 1/4”, 5/16” and 3/8”.  Handles up to 14”wide paper.

Price $299

An important part of the bindery process is Paper Drilling.  Whether you need holes for 3 ring binders or Calendars, a Paper Drill can make the difference of you having to outsource simple work or keep profits in house & speed up turnaround times.

We have a varied selection of Paper Drills from Table Top single spindle drills to 5 or 10 hole Paper Drills for Industrial applications.  Please contact us for any recommendations.
