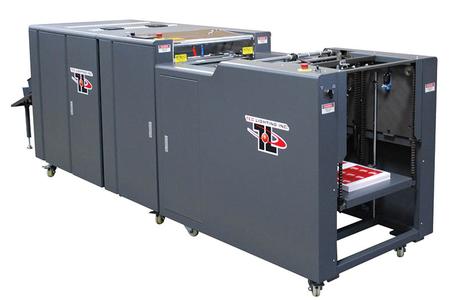

The TruCoat UV Coater is truly a unique coating technology. Its sophisticated design can increase your profit margin by enhancing the aesthetic quality of your products and diversify product offerings.It was designed from the ground up to offer the very best in performance and simplicity. TruCoat technology can provide your business the highest possible UV coating available, and is simple enough for anyone to operate.

Some features include an “Easy to Use” touch screen, variable intensity IR lamps and quick-change rollers that take only 5 minutes to replace. The TruCoat system is the ultimate coating solution to help you become a threat in your business.

Apply gloss-satin and matte coatings
Coat toner based, offset or inkjet with ease
Quick change textured rollers for an array of finishes

Speeds of up o 4,000SPH
High production auto-feeders and stackers available

From start to coating in less than 5 Minutes
Less than 10 minutes to switch between different coatings

0 VOC UV coating and wash-up fluid
UV coated documents are 100% recyclable

LESS THAN ½ PENNY PER SQFT

Modern/compact design
All steel construction
3 roll application system with quick-change roller design
Stainless steel doctor blade

We have UV Coaters available in 14", 16", 21", 30" widths.  Optional Feeders & Conveyor attachments.  We welcome demo opportunities and side by side comparisons with any manufacturer.

Toll Free 866-988-4403
909-988-4403
909-590-1103 fax
rene@binderpro.com

Need an "Inline" system ? We have that as well.  More info coming soon....

14" Xtra Coat Mini Coater

Press & Post Press Bindery Equipment & Supplies, Automatic Punches, Laminators, Finishing Systems, Automatic Coil Inserters, Laminating Products

Binder Products    PO Box 2209   Chino, Ca  91708   P 909 988 4403   F 909 590 1103   questions@binderpro.com  All Rights Reserved

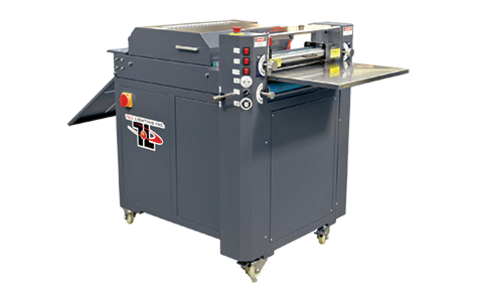

Are you looking to make the most of your workspace without having to sacrifice performance of a professional UV coater? We have your solution! The XtraCoat MINI is designed with the short run printer in mind. It offers a fantastic finish all while being the smallest footprint production UV coater available on the market.

The XtraCoat MINI is small but incorporates all the features of larger units including a peristaltic fluid pump, IR Lamps for flow-out and adhesion and a stainless steel doctor blade to ensure the ability to run double-sided work. In three short minutes you can set-up the unit and begin producing stunning UV coating. The XtraCoat MINI is the answer for today’s short run printer.

Small footprint (Under 10 sq. ft.)
3-minute set-up and cleanup
Adjustable intensity IR for flow-out and adhesion
3 roll applicator system with doctor blade
Easy to adjust roller gaps
HD duty casters for mobility
Enclosed design for noise reduction in office environments

Offset and digital
Xerox
Ricoh
Konica Minolta
Canon
HP
OCE
Screen digital
Xante

Available in 16", 21" & 30" Coating Widths

With the Sheet Feeder feed up to:

TruVF 16"x20"

TruVF 21"x24"

​TruVF 30"x24"

Paper Weight: 150 gsm to 600 gsm

Speed up to 4,800 sph

Power: 208-220 1ph 60hz 25amps
Format: 14” x any length
Paper Weight: 100lb text to 30 point
Dimensions of Unit: 40”x 32”​

100% Made in the USA !!

UV/AQ Coating on printed sheets offline or near-line has become the Printers need of the Century. With so much On-demand Printing going on, Printers need a solid reliable solution for their Coating necessities and a company to support them.

Below are a few of our UV Coaters.  Made locally here in California, 100% Made in the USA.  These are among the finest in the industry. These UV Coaters are built to last & can help companies achieve there highest level of UV Coating requirements.  Backed by extensive warranty coverage and support as well as onsite installation and training, we can help you reach your goals.  UV Coating, Aqueous Coating, Soft Touch Coating, Coating Solutions for Food applications, our manufacturing has a large variety of finishing options for you.  We sell & install these systems all over the USA as well as in other countries.

FOR PAPER, PVC AND BOARD STOCKS. Offset, inkjet * Canon * HP * Kodak * Konica Minolta * Heidelberg * Ryobi * Xerox * Presstek * Ricoh * And More!
