Cold Laminator (pressure sensitive)

Same Model available in 25", 38", 55" & 65"

PL244hp44" Width
$5,995 Commercial Roll Laminator
*Laminates up to 10 mil, 1 side or two
*Variable Speed up to 10' per minute
*reverse button
*Approx. 5 minute warm up time
*Silicone Heated Rollers!!!
*3" Mandrels!!!
*Digital Temperature Control
*Mounts up to 1/4"
*Gapable Heat Rollers
*Lower Cooling Fans
*Side Slitters
*120v

PL238hp38" Width
$4,495 Commercial Roll Laminator
*Laminates up to 10 mil, 1 side or two
*Variable Speed up to 10' per minute
*reverse button
*Approx. 5 minute warm up time
*Silicone Heated Rollers!!!
*3" Mandrels!!!
*Digital Temperature Control
*Mounts up to 1/4"
*Gapable Heat Rollers
*Lower Cooling Fans
*Side Slitters
*120v

PL227hp27" Width
$3,595 Commercial Roll Laminator
*Laminates up to 10 mil, 1 side or two
*Variable Speed up to 16' per minute
*reverse button
*Approx. 5 minute warm up time
*Silicone Heated Rollers!!!
*3" Mandrels!!!
*Digital Temperature Control
*Mounts up to 1/4"
*Gapable Heat Rollers
*Lower Cooling Fans
*Side Slitters
*120v

13" Pocket Rocket
$2,895 Commercial Roll Laminator
*Laminates up to 10 mil, 1 side or two
*Variable Speed up to 20' per minute
*reverse button
*Approx. 5 minute warm up time
*Silicone Heated Rollers!!!
*3" Mandrels!!!
*Digital Temperature Control
*Mounts up to 1/4"
*Gapable Heat Rollers
*Lower Cooling Fans
*Side Slitters
*120v

We carry an assortment of Roll Laminating Machines for most applications.  From 13" to 55" we have the equipment & expertise to help you laminate and mount your prints.  We've owned or operated most of the same machinery, and we understand the process.  If you need help with Single Side applications, visit our Single Side Laminator page, or give us a call if you need help !

Press & Post Press Bindery Equipment & Supplies, Automatic Punches, Laminators, Finishing Systems, Automatic Coil Inserters, Laminating Products
Toll Free 866-988-4403
909-988-4403
909-590-1103 fax
rene@binderpro.com
Expression™ 62 Plus

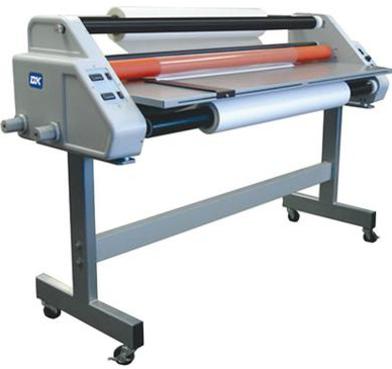

The EXP 62 Plus Laminator offers you the perfect finishing solution for your wide format graphics up to 61" wide. With its easy to use display and versatility of using either pressure sensitive or thermal laminating films, the EXP 62 Plus Laminator is the perfect machine for all your wide format finishing needs.


Specifications
Working Width (laminating width): 61"
Laminator Width: 80"Height: 50"Depth: 28"
Net Weight: 500 lbs
Shipping Weight: 620 lbs
Speed: 1-10 fpm
Maximum Temperature: 300°F
Maximum Aperture: 1/2"
Roller Diameter: 4 1/6"
Air: N/A
Electrical: 230V single phase 30 amps
Stand: (included)
Release Liner Rewind: (included)
Foot Switch: (optional)
Slitter Kit: (optional)


Features
Easy To Use  Mounter, Laminator, Encapsulator
Fast set-up and easy operation
Roller lift for easy film loading
In-line slitter for trimming during lamination(optional)
Variable roller pressure
Accepts low-melt, thermal, and pressure sensitive films  Accommodates substrates up to 1/2" thick
Accommodates rolls up to 8" in diameter
Release liner rewind (included)
Operator-Friendly  "Ready" and "Wait" lights indicate when the laminator has reached preset temperatures
Independent upper and lower electronic temperature controls with led display
Spring-Loaded adjustable pressure on laminating and pull rollers for smooth, even lamination
Footswitch allows hands-free operation for guided materials during lamination (optional)
Auto-grip shafts for easy loading of film
Heavy Duty  Designed for mounting and laminating low-temp, thermal, and pressure sensitive films
Heated Rollers for a variety of films
Heavy-Duty forward/reverse variable speed motor
Sturdy feed-back table with adjustable feed guide
Heavy-Duty top grade silicone rubber rollers
Heavy-Duty chain and sprocket drive
Cooling Fans  Four high-capacity forced air cooling fans

Laminating Width

25"     $1,295

38"     $1,695

55"     $2,195

65"     $2,700

*add $305 for stand & footswitch

Great for:
Laminating wide format wraps, signage and photos
Mounting prints to boards
Applying transfer tapes and reflective sheeting

Thousands of dollars less than other laminators while providing all the essential features including:
Automatic pressure control
Silicone covered top and bottom nip rollers
Automatic take up shaft for liner paper
Print holder in front for long prints
Rugged steel and aluminum casing
Accommodates boards up to 1/2″ thick

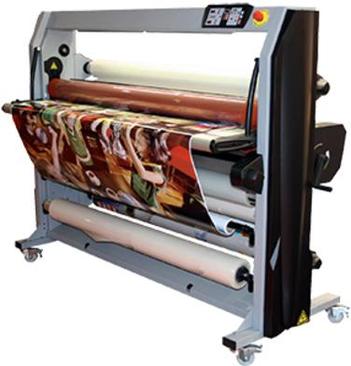

The EXP 65+is a heavy duty thermal laminator designed for production environments. The EXP 65+ Laminator can handle material up to 67" wide and is ideal for wide format graphics. The EXP 65+ offers roll-to-roll lamination and can mount onto substrates up to 2" thick.


Specifications:

Working Width: 67"Laminator Width: 81"Height: 60"Depth: 33"Net Weight: 720 lbs.Shipping Weight: 738 lbs.Speed: 0-21 fpmMaximum Temperature: 280°Maximum Aperture: 2"Roller Diameter: 4 1/4"Air Requirements: N/AElectrical Requirements:230V/15A

Digital control panel  Preset and programmable memory settings for quick setup  Optical eye safety mechanism  High-Quality heated top and bottom rollers (up to 280F)  Integrated takeup rollers for roll-to-roll lamination  Mount onto rigid panels up to 2" thick  Integrated stand with additional film roll storage space  Swinging feed table with rounded edges to avoid damage to prints during lamination  Release liner rewind  Foot Control Pedal for hands-free operation

Laminating

You can laminate long prints for vehicle wraps down to smaller photos.
Laminating provides many benefits:

Provides scratch resistance and UV protection
Protects print from dirt and fingerprints
Enhances the vibrancy of the inks
Extends the life of the print


Professional Mounting

Solo makes mounting prints to boards fast and easy.
It can also apply adhesive to your boards from a roll.


Optional Stand and Footswitch
