Are you square or round ?  You do have a choice !  Rounding Corners can make an ordinary book have a much more appealing look to it.  And it also serves a function.  Sometimes square corners can dog ear.  Rounding Corners help keep them from knicking edges.  We have Corner Rounding machines for commercial applications and heavy use.  And even our table top units are heavy duty.  Browse our selection below & see what best fits your needs !

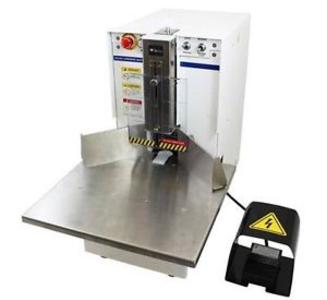

The Diamond Series just got better !  The Diamond 7 is the next generation in heavy duty table top Corner Rounding.  This unit can cut up to 2.75" per lift !

Foot Pedal Operated

2.75" cutting capacity (up to 700 sheets)

Patented Die Design

Safety Cover

1 yr. warranty

5 Optional Dies Size 1/8", 1/4", 3/8" corner radius plus half moon cuts

Price $5,495 (includes 2 dies 1/8" & 1/4")

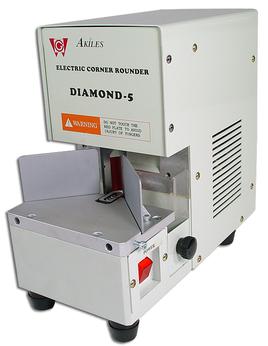

The ultimate industrial use electric corner rounding equipment. Ideal for large jobs that require high productivity. Carefully crafted with only the highest quality components.  Work with all standard materials, like: PVC, polyester, leather, paper, polypropeline, etc.  Have high productivity: Specially designed to cut through multiple sheets at a time with the least effort and with minimum die depreciation.  Are practical: With an interchangeable die system for your various jobs. Are ideal for rounding covers, pouches, pictures, all types of IDs, invitations, postcards, etc.

Foot Pedal Operated

1.97" cutting capacity

1 yr. warranty

Optional Die Size 1/8", 1/4", 3/8" corner radius

Price $4,995 (includes 2 dies 1/8" & 1/4")

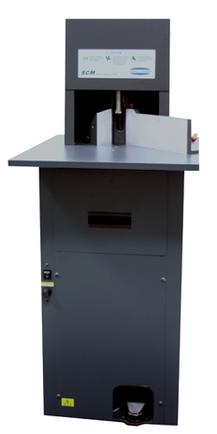

Challenge SCM Corner Rounder

- 6 Sizes of Cornering Blades

- Handles Any Size Sheet

- 4" Lift Capacity

- Precise Cutting Action

- Gravity Chip Disposal

Maximum Lift Height 4" / 10 cm

Range of Lift Widths

Open Corner

Sizes Handled 1/8" to 5/8" / 3 - 16 mm

DIMENSIONS

Table Depth 24" / 6 cm Table Width 20-1/4" / 51.5 cm Table Height 36" / 91 cm

Overall Height 52" / 132 cm

Floor Space Needed 24" x 20-1/4" / 61 x 51.5 cm

Net Weight (approximate) 190 lbs / 86 kg

Shipping Weight (approximate) 265 lbs / 120 kg

ELECTRICAL 1 Phase, 60 Hz, AC.   Pump: 1/2 HP115 Volts, 13.5 Amps (service size 20 Amps)

Price $5,995
