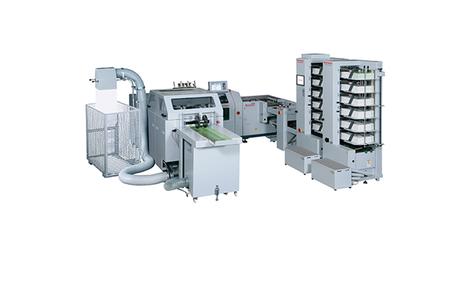

The Horizon StitchLiner6000 is an innovative saddle-stitching system which incorporates flat sheet collating, scoring, folding, stitching and three-knife trimming in line. The StitchLiner6000 provides user-friendly operation, high productivity and versatility for on demand, production print, and trade bindery environments. At up to 6,000 booklets per hour, the StitchLiner6000 is ideally suited for landscape-oriented booklets

​​Horizon produces end-to-end binding solutions for print finishing environments. These systems include both on-line and off-line finishing equipment:

FOLD:                               Sheets are folded into various formats, such as half-fold, letter-fold, or signature fold
COLLATE :                        Sheets or signatures are gathered in sequential order
BIND or STITCH :            Sheets are glued into a cover to form a perfect bound book

                                          Sheets are center-stitched to form a saddle stitched booklet
CUT :                                Sheets are cut or books are trimmed on three sides

Horizon products meets the requirements of every customer, including office and in-plant, quick printers, print on demand environments, and large commercial printers.

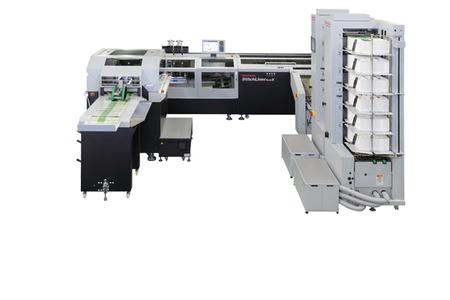

With the innovative evolution, fully- automated StitchLiner Mark III enables the more efficient and higher quality stitching operation.  Full Automated Settings: With the horizon's unique software, the high quality and stable stitching of variable thickness production is enable.  Variable Thickness Production: Efficient small lot and variable thickness production in high productivity by the fast changeover is achieved. The variable job with different number of sheets can be processed in high-speed.
A4 Landscape Stitching: The StitchLiner Mark III can process maximum 6,000 of A4S booklets per hour and maximum 5,300 of A4E booklets per hour. (Note that the production speed differs depending on the sheet weight or the thickness.)

Binder Products    PO Box 2209   Chino, Ca  91708   P 909 988 4403   F 909 590 1103   questions@binderpro.com  All Rights Reserved

All necessary settings for a wide variety of booklet formats, ranging from CD to A4 landscape (A4 landscape is available only with SPF-200L) can be performed automatically through the touchscreen display. Even the fold roller gap adjustment is automated. The quick fullyautomatic changeover is suited for effi cient small lot production and leads to a reduction of test sheets.

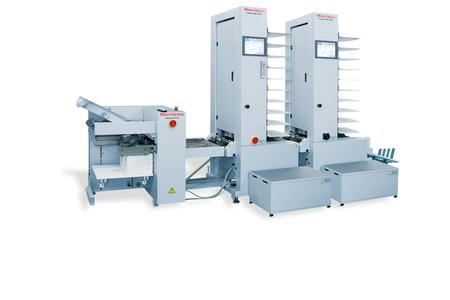

Horizon’s unique rotary suction feeding system operates effectively on a wide range of paper stocks. The VAC-1000 towers can also be placed in-line with Horizon bookletmaking systems.  Horizon’s unique suction rotor feeding system can feed a wide variety of paper stocks. Even signatures can be fed consistently. The feed wheel employs a special, highly durable rubber for totally mark-less feeding. Feed height sensors and air blowers enable a broad range of sheets to be fed with ease.

Press & Post Press Bindery Equipment & Supplies, Automatic Punches, Laminators, Finishing Systems, Automatic Coil Inserters, Laminating Products
Toll Free 866-988-4403
909-988-4403
909-590-1103 fax
rene@binderpro.com

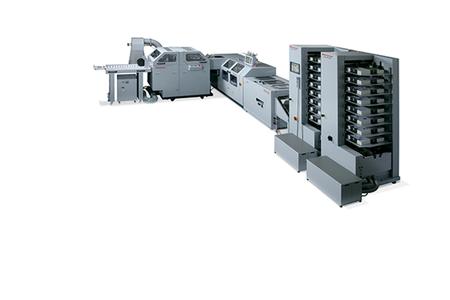

The Horizon StitchLiner5500 is an innovative saddle-stitching system which incorporates flat sheet collating, scoring, folding, stitching and three-knife trimming in line. The StitchLiner5500 provides user-friendly operation, high productivity and versatility for on demand, production print, and trade bindery environments. At up to 5,500 booklets per hour with quick-changeover, the StitchLiner5500 is ideal for short, medium and long production runs
